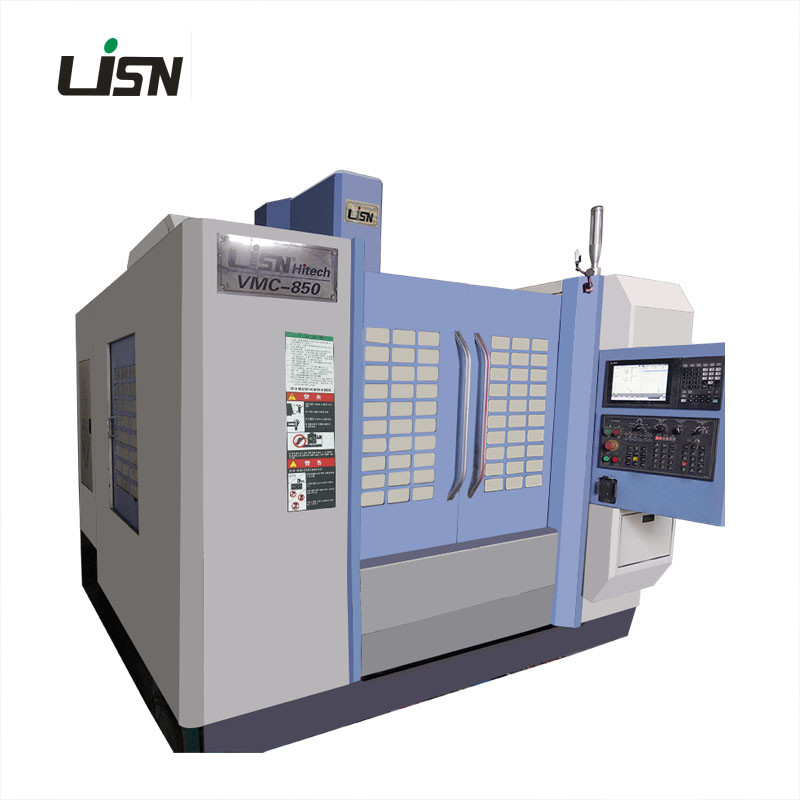

SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855

Name: SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855
Brand: Li Zhun
Price: 1 USD

SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855 Manufactures

Brand Name : Li Zhun

Model Number : VMC-855

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10000 per year

Delivery Time : 15-30 work days

Packaging Details : Wooden Box

Certification : SGS

Product Name : 5 Axis CNC Vertical Machining Center VMC 855

Condition : New

Warranty : 1 Year

Type : Vertical

Spindle Taper : BT40

Spindle Speed : 10000 RPM

Axis : 5

Contact Now

High Precision 5 Axis CNC Vertical Machining Center VMC 855 High Speed

Product Description

The VMC855 is one of the products in the VMC series. This model is an upgrade of VMC850. Compared with VMC850, VMC855 has a larger size of worktable, which can better process large and complex parts. The 5 Axis CNC Vertical Machining Center VMC 855 has a high strength construction and Integrated bearing block, which can effectively improve the overall rigidity of the axial system and effectively avoid the rotation deformation of the screw. It is also using the oil-water separation design, which can not only prolong the service life of the chip fluid, but also reduce the cost and meet the requirements of environmental protection requirement. The three-axis lead screw adopts the installation method of fixed two ends, and with large high precision ball screw, the best speed response and positioning accuracy can be obtained by pre-stretching treatment.

Main Technical Parameters

ITEM	MODELS→	VMC855
WORKTABLE (WIDTH*LENGTH)	mm	550*1000
DISTANCE BETWEEN T SLOTS	mm	5-18*100
MAX LOAD BEARING OF WORKTABLE	kg	600
X/Y/Z AXIS TRAVEL	mm	800/550/600
X/Y/Z AXIS TRAVEL	mm	800/550/600
5-AXIS	/
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	110-810/110-610
SPINDLE HOLE TAPER		BT40
SPINDLE SPEED RANGE	r/min	10000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT/DIRECT
SPINDLE MOTOR POWER	kW	7.5
X/Y/Z RAPID FEED SPEED	m/min	363624
MAX CUTTING FEED SPEED	mm/min	10000
MAX CUTTING FEED SPEED	mm/min	10000
TOOLS MAGAZINE CAPACITY	pcs	24


FULL TOOLS MAX TOOL DIAMETER	mm	100
FULL TOOLS MAX TOOL DIAMETER	mm	100
MAX.TOOLS ALLOWABLE WEIGHT	kg	7
MAX.TOOLS ALLOWABLE LENGTH	mm	260
X/Y/Z POSITION ACCURACY	mm	0.008
X/Y/Z RE-POSITION ACCURACY	mm	0.005
MACHINE DIMENSION	mm	2495*1970
MACHINE DIMENSION	mm	2495*1970
MACHINE WEIGHT	kg	6000

Standard Configuration for VMC Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / 10000 RPM spindle / Worktable cleaning water gun

Optional Configuration for VMC Series

24 disc manipulator tool magazine / Crawler chips remover / NC rotary table (4 Axis) / CTS / Tool detection system / AJO / 12000 & 15000 RPM Direct connection spindle / Oil mist purifier
