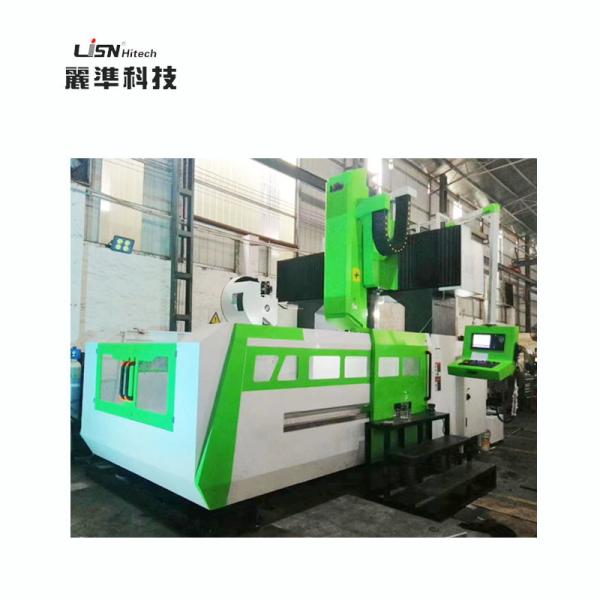

High Precision 4 Axis Double Column CNC Machining Center DY-2513 High Rigidity
The 4-axis version of the DY-2513 has excellent performance like other DY series products. Whether it is the precision of processing, processing efficiency, rigidity of the machine, or the stability of the machine are very excellent. The body and all parts of the machine are made of high quality materials to ensure rigidity and good precision performance. This machine also equips a huge worktable and the size is 2700mm*1100mm, and the maximum bearing capability is up to 8t.
Main Technical Parameters
| ITEM | MODELS | DY2513 |
| WORKTABLE (WIDTH*LENGTH) | mm | 2700*1100 |
| MAX LOAD BEARING OF WORKTABLE | t | 8 |
| X/Y/Z AXIS TRAVEL | mm | 2500/1300/800 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 150-950 |
| SPINDLE HOLE TAPER | | BT50 |
| SPINDLE SPEED RANGE | r/min | 6000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT | BELT |
| DISTANCE BETWEEN TOW COLUMNS | mm | 1300 |
| X/Y/Z RAPID FEED SPEED | m/min | 12/12/10 |
| MAX CUTTING FEED SPEED | m/min | 10-7000 |
| X/Y/Z POSITION ACCURACY | mm | ±0.015/300 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.01 |
| MACHINE DIMENSION | mm | 7100*4282*4565 |
| MACHINE WEIGHT | T | 23 |
| POWER DEMAND | KVA | 35 |
| AIR PRESSURE | m ³mim | 7 |
Standard Configuration for Gantry Series
1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series
1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system
Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
